OE Number : 9253240000; 9253211600; 136410030; 35304902040
Suitable for :

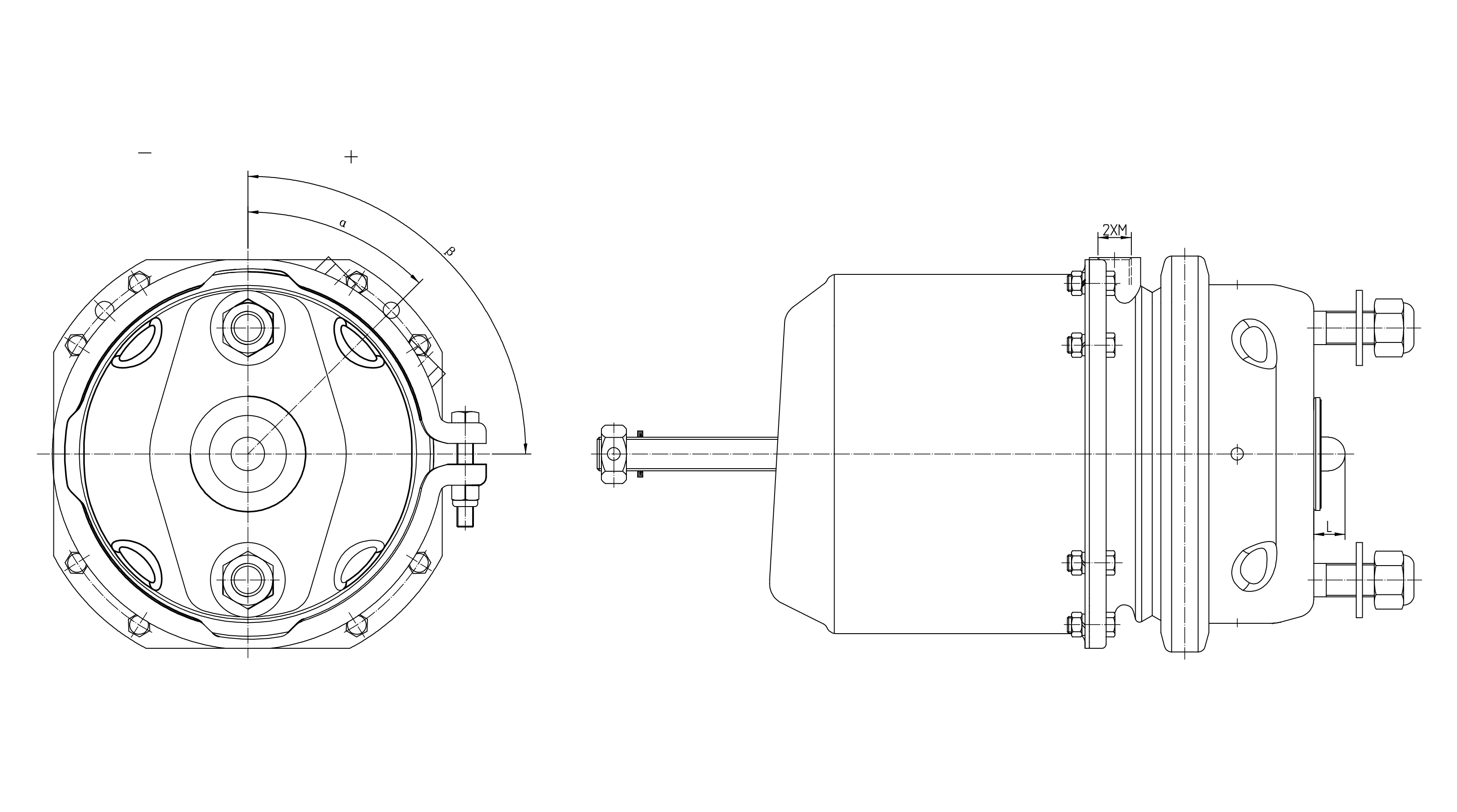

| TYPE | SD NUMBER | OE KNORR/WABCO | PART NUMBER | M | α | β | F | L1 | L2 |
| H16/24G | SD95002 | M16*1.5 | 0 | -90 | 8700 | 270 | |||
| SD95002W | 9253240000 | 0 | 45 | 187 | |||||
| H20/24G | SD95003 | M16*1.5 | 0 | -90 | 8700 | 260 | |||
| H24/24G | SD95004 | M16*1.5 | 0 | 45 | 8700 | 260 | |||
| SD95004N | 9253211600 | -135 | 187 | ||||||
| SD95004N01 | 9253212020 | M22*1.5 | 0 | 290 | |||||
| SD95004N05 | HLP3502041CK7ME | M16*1.5 | 0 | 140 | |||||
| SD95004N08 | CH8H8-35300001 | -40 | 65 | ||||||
| H27/24G | SD95014 | M16*1.5 | -54 | 45 | 8700 | 260 | |||
| H30/24G | SD95006 | M16*1.5 | 0 | 180 | 8700 | 260 | |||
| SD95012N01 | CH3530KBG010B0 | -40 | 0 | 65 | |||||
| SD95012N02 | CH3530KBG020B0 | 40 | 65 | ||||||
| SD95012N03 | CH3530KBG030B0 | NPT3/8 | -40 | 65 | |||||
| SD95012N04 | CH3530KBG040B0 | 40 | 65 | ||||||
| SD95012N11 | 136 410 030 | 0 | 40 | 180 | |||||
| SD95012N12 | 136 410 040 | -40 | 180 | ||||||
| H24/30G | SD95005 | M16*1.5 | 0 | 45 | 9100 | 265 | |||
| H27/30G | SD95009 | M16*1.5 | 0 | -65 | 9100 | 65 | |||
| SD95009N | 0 | 45 | 245 | ||||||
| H30/30G | SD95007 | M16*1.5 | 0 | 45 | 9100 | 250 | |||
| SD95007N01 | 3530 490 204 0 | -40 | 65 | ||||||
| SD95007N02 | 3530 490 205 0 | 40 | 65 | ||||||
| H36/30G | SD95013 | M16*1.5 | 0 | 90 | 9100 | 235 |
