OE Number : 4231420200; 4230700680; 4231420010; BY3456; 4231430040
Suitable for : MAN; DAF; IVECO; VOLVO; IRISBUS

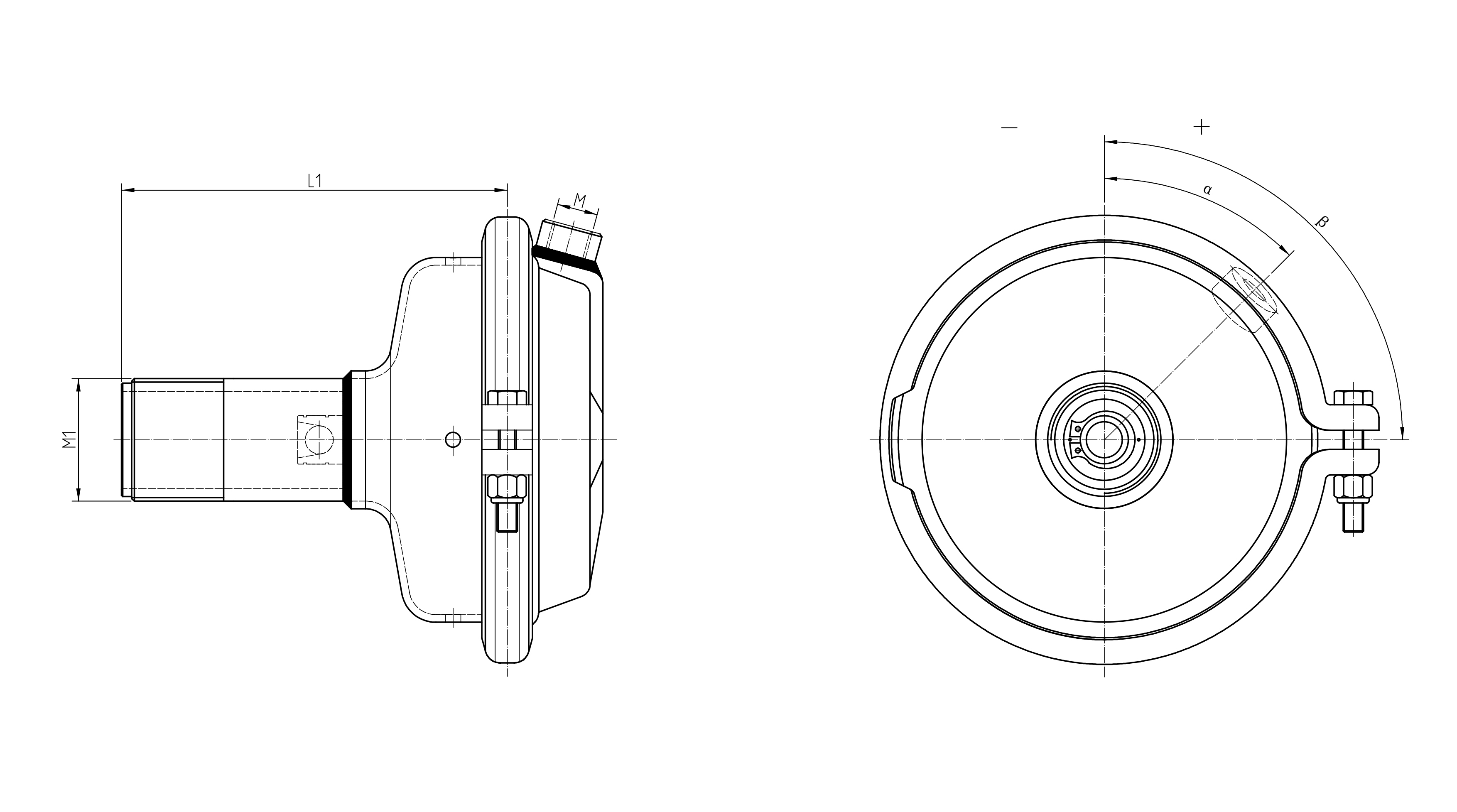

| TYPE | SD NUMBER | OE KNORR/WABCO | PART NUMBER | M | α | β | L1 | L2 | M3 | VEHICLE |
| Flat Bottom: | ||||||||||
| 9J | SD31003 | EF90YE | M16*1.5 | 0 | -45 | 117 | 142 | M48*2 | ||
| SD31003N | 4231420200 | 4776985 | 215 | 1 3/4"-12UNS | ||||||
| 12J | SD31002N05 | 4230700680 4230700670 | M16*1.5 | 0 | 180 | 176 | M48*2 | |||
| SD31002N06 | 4231432000 | -135 | 161 | |||||||
| 16J | SD31005 | EF161FY | M16*1.5 | 0 | 180 | 160 | 187 | M48*2 | ||
| SD31005N | -90 | 151 | ||||||||
| 22J | SD31006 | BY3456 | M16*1.5 | 0 | 180 | 150 | M48*2 | |||
| SD31006N | SD31-22 | -45 | 160 | |||||||
| Inclined Bottom: | ||||||||||
| 9J | SD31001 | 4231420010 | EF90AB 81511019270 1517953 6873710 4464477 4452022 2520947 4462022 4713104 04724488 61598729 | M16*1.5 | 0 | 0 | 138 | 1 3/4"-12UNS | MAN IEVCO VOLVO IRISBUS | |
| 12J | SD31002 | C4191200 | M16*1.5 | 0 | -135 | 194 | 218 | M48x2 | ||
| SD31002N | 4231430040 | 81511016211 EF120F | 187 | 13/4"-12UNS | ||||||
| SD31002N01 | 4231430010 | EF120P | 140 | |||||||
| SD31002N02 | 4231430120 | 145 | ||||||||
| SD31002N03 | 4231430020 | 365 | ||||||||
| SD31002N04 | EF120FYE 4231432000 | 4835038 | 187 | M48*2 |
