OE Number : 4254262010; 4254299010; 4254571000; 4253332000
Suitable for : IVECO

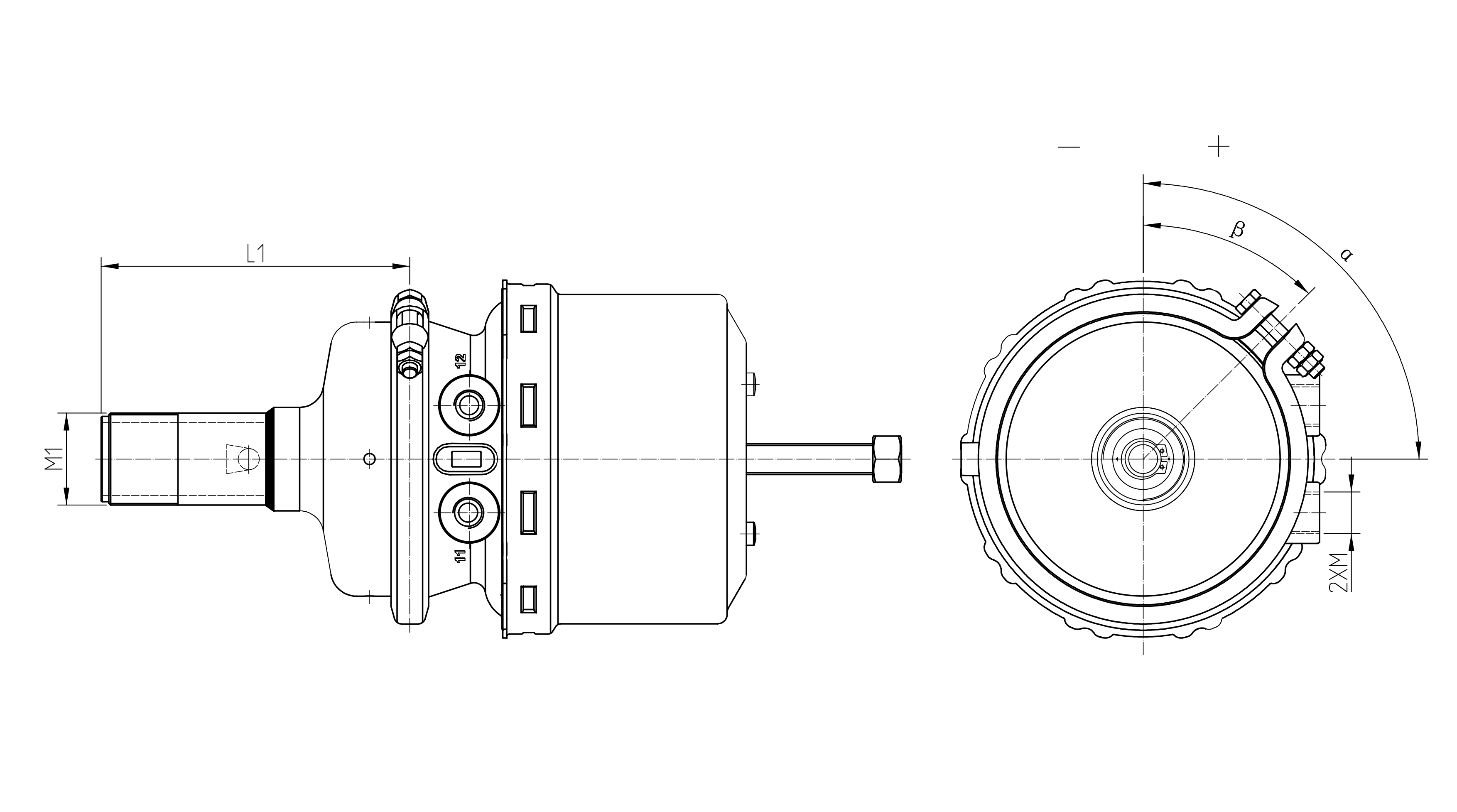

| TYPE | SD NUMBER | OE KNORR/WABCO | PART NUMBER | M | α | β | F | L1 | M3 | VEHICLE |
| Q9/16J | SD36001 | BTP36001 | M16*1.5 | 0 | 180 | 6800 | 118 | |||
| Q10/516J | SD36006 | M16*1.5 | 0 | 60 | 150 | |||||
| SD36006N01 | M22*1.5 | |||||||||
| Q12/16J | SD36002 | 4254262010 | M22*1.5VOSS | 0 | -90 | 6400 | 113 | M48*1.5 | ||
| SD36002N03 | 100.020.024 | M16*1.5 | -90 | 6800 | 160 | |||||
| SD36002N04 | 4254540710 | M22*1.5 | 180 | 176 | M48*1.5 | |||||
| 4254540790 | ||||||||||
| Q18/16J | SD36007 | 4254299010 | M16*1.5 | 0 | 155 | 6950 | 150 | M48*2 | ||
| Q16/16J | SD36003 | 4254289000 | M16*1.5 | 0 | 155 | 6950 | 150 | M48*2 | ||
| Q14/24J | SD36011 | 4254561000 | M22*1.5VOSS | 0 | 180 | 7950 | 148 | M48*1.5 | ||
| Q16/24J | SD36004 | 4253571000 | M16*1.5 | 0 | 155 | 6950 | 150 | M48*2 | ||
| SD36004N01 | M22*1.5VOSS | 90 | 180 | 7800 | 161 | |||||
| SD36004N02 | M16*1.5 | 180 | 161 | |||||||
| Q18/24J | SD36008 | SD36-18/24 | M22*1.5VOSS | 0 | 45 | 7800 | 158 | M48*2 | ||
| SD36008N01 | 180 | 159 | ||||||||
| SD36008N02 | 4254571000 | 4254571000 | 148 | |||||||
| Q20/24J | SD36009 | M16*1.5 | 0 | 135 | 7800 | 160 | M48*2 | |||
| SD36009N01 | 4253332000 4253332010 4253332030 4253332040 4253332120 | 180 | ||||||||
| Q22/24J | SD36010 | 100.020.036 | M16*1.5 | 0 | 135 | 7800 | 160 | M48*2 | ||
| Q24/24J | SD36005 | M22*1.5VOSS | 0 | 135 | 160 | M48*2 | IVECO |
