OE Number : BY9153; BY9205; BY9305; BY9401; BY9500; BY9328
Suitable for : IVECO; DAF; DAIMLER; MAGRIUS; IRISBUS

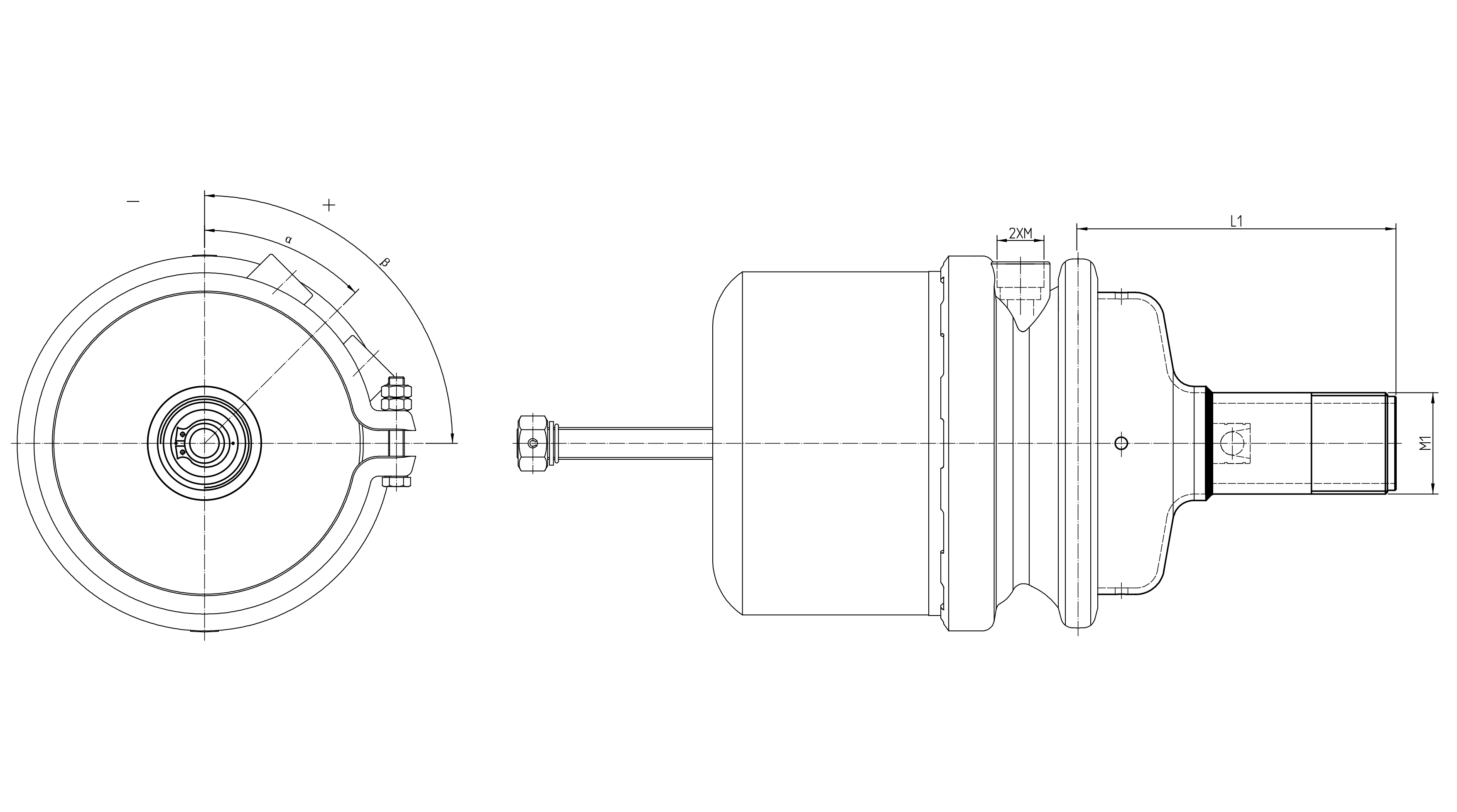

| TYPE | SD NUMBER | OE KNORR/WABCO | PART NUMBER | M | α | β | F | L1 | M3 | VEHICLE |
| K10.516J | SD310KJ | BY9153-II18525 | 0054200424 | M22*1.5VOSS | 0 | 60 | 175 | M48x2 | IEVCO-EUROCARGO | |
| K10.520J | SD311KJ | BY9150-II16486 | 99446698 4851664 04851664 92901220 | M16*1.5 | 180 | M48x2 | IEVCO-EUROCARGO | |||
| SD311KJ01 | BY9157-II31550 | ACHA146 | 202 | DAF | ||||||
| K12/16J | SD312KJN | BY9238-K003869 | M16*1.5 | 187 | 13/4"-12UNS | |||||
| K16/16J | SD313KJ | M22*1.5VOSS | 90 | 180 | 150 | M48*2 | ||||
| K12/20J | SD306KJ | BY9205-II17468 BY9206-II17469 BY9207-II17470 BY9216-II31551 BY9220-II31996 | 99446699 98403027 4835041 | M16*1.5 | 0 | 60 | M48x2 | DAF | ||
| K14/20J | SD307KJ | BY9251-II7472 | 99446701 04835042 4835042 | M16*1.5 | 90 | 150 | 180 | M48*2 | MAGRIUS IEVCO | |
| SD307KJ01 | BY9251-II17472 | M22*1.5VOSS | 90 | 150 | 180 | |||||
| SD307KJ02 | BY9250-II17471 | M16*1.5 | 0 | 60 | 167 | M48x2 | ||||
| SD307KJ03 | BY9260-II19750 | 41013260 | 190 | |||||||
| K16/20J | SD308KJ | BY9305-K014026 | 4128 5147 | M16*1.5 | 0 | 60 | M48x2 | |||
| SD308KJ01 | BY9304-II17473 | |||||||||
| SD308KJ02 | M22*1.5VOSS | 90 | 180 | IVECO | ||||||
| SD308KJ03 | BY9370-K011996 | M16*1.5 | 0 | 155 | M48x2 | |||||
| SD308KJ04 | BY9371-K011997 | -120 | ||||||||
| K18/20J | SD314KJ | BY9372-K012717 | M16*1.5 | 0 | 155 | 180 | M48x2 | |||
| SD314KJ01 | BY9369-K011981 | -120 | 220 | |||||||
| SD314KJ02 | BY9292-K100420N00 | 5801779565 41013260 | 135 | 160 | ||||||
| K14/24J | SD301KJ | 718275 | M22*1.5VOSS | 90 | 180 | 161 | ||||
| K16/24J | SD302KJ | BY9303-II17086 BY9303-K014028 | M16*1.5 | 0 | 135 | 160 | M48x2 | |||
| SD302KJ01 | BY9346-K100421 BY9347-K100422 | 5801779566 | ||||||||
| K18/24J | SD309KJ | BY9351-II16159 BY9367-K001715 | 08169240 718277 41211373 41211376 | M16*1.5 | 0 | 135 | 160 | M48x2 | IEVCO | |
| SD309KJ01 | BY9368-K003924 | 41211463 | 215 | IEVCO | ||||||
| K20/24J | SD303KJ | BY9401-II16160 | 8169241 08169241 08189489 | M16*1.5 | 0 | 135 | 160 | M48x2 | Daimler | |
| SD303KJ01 | BY9400-I98823 | |||||||||
| SD303KJ02 | BY9408-II32135 | 215 | ||||||||
| K22/24J | SD304KJ | BY9451-II17755 | 41006333 | M16*1.5 | 0 | 135 | 160 | M48x2 | Daimler | |
| SD304KJ03 | BY9452-II34689 BY9452-II18692 | |||||||||
| SD304KJ02 | BY9460-II35718 | 195 | ||||||||
| SD304KJ04 | BY9453-II18693 | 215 | ||||||||
| SD304KJ01 | M22*1.5VOSS | 160 | ||||||||
| K24/24J | SD305KJ | BY9500-I98825 | 0813 7768 | M16*1.5 | 0 | 135 | 160 | M48x2 | ||
| SD305KJ01 | BY9505-II34017 | -135 | 215 | M45x1.5 | ||||||
| SD305KJA | BY9501-II17756 | 4101 5818 | 135 | 160 | M48x2 | |||||
| Long Cylinder: | ||||||||||
| K12/20JA | SD373KJ | BY9225-II36537 | K090760N | M16*1.5 | 0 | 60 | 157 | 3/4"-12UNS | IEVCO | |
| SD373KJ01 | BY9230-II39595F | 504007758 08174494 | -135 | 177 | M48x2 | IRISBUS IEVCO | ||||
| SD373KJ02 | BY9236-K003865 | 98446265 | 157 | 3/4"-12UNS | IEVCO | |||||
| K14/24JA | SD371KJ | BY9328 | 02.1424.70HF 718279 | M22*1.5VOSS | 0 | 135 | 160 | M48*2 | IVECO | |
| SD371KJ01 | BY9272-II39358F | 4121 1077 | M16*1.5 | |||||||
| K16/24JA | SD372KJ | BY9328-K014032 BY9328-II39229 | 41285153 718280 | M16*1.5 | M48*2 | IRIS BUS IVECO | ||||
| SD372KJ01 | BY9331-K014030 BY9328-K001059 | 41285153 718281 |
