OE Number : BY9370; BY9372; BY9451; BY9276; BY9331; 41285151
Suitable for : IVECO

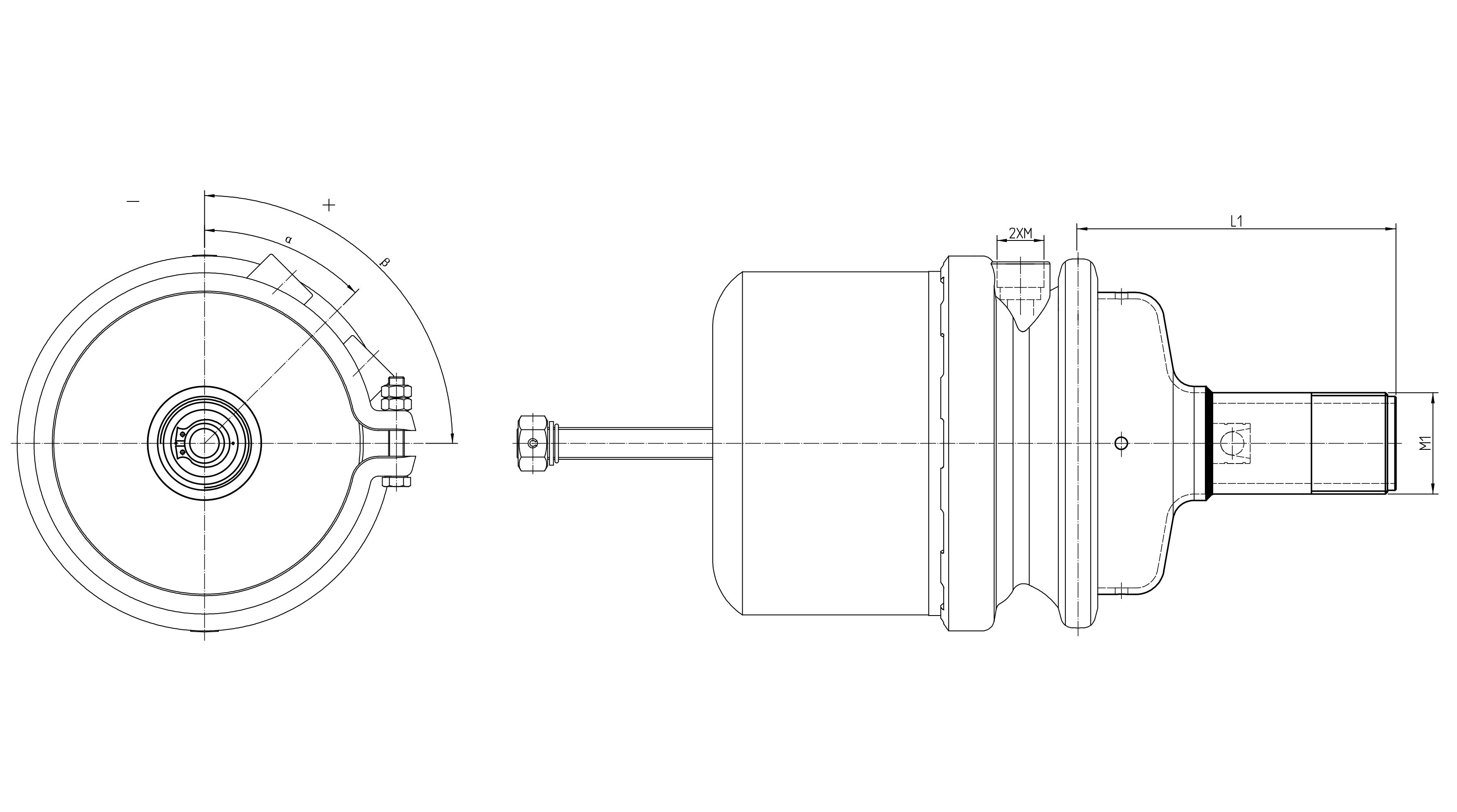

| TYPE | SD NUMBER | OE KNORR/WABCO | PART NUMBER | M | α | β | F | L1 | M3 | VEHICLE |
| K12/16J2 | SD201KJ | M22*1.5VOSS | 90 | 180 | 158 | |||||
| K16/16J2 | SD203KJ | M22*1.5VOSS | 90 | 180 | 150 | M48*2 | ||||
| K12/20J2 | SD202KJ | BDW6801220 | M22*1.5VOSS | 90 | 180 | 160 | M48*2 | |||
| K14/20J2 | SD204KJ | M16*1.5 | 90 | 180 | 150 | M48*2 | ||||
| K16/20J2 | SD205KJ | BY9370 | BY9370 | M16*1.5 | 90 | 180 | 150 | M48*2 | ||
| K18/20J2 | SD208KJ | BY9372 | BY9372 | M16*1.5 | 90 | 180 | 150 | |||
| SD208KJ01 | BY9369 | BY9369 | 190 | |||||||
| K14/24J2 | SD206KJ | M22*1.5VOSS | 90 | 180 | 160 | M48*2 | ||||
| K16/24J2 | SD207KJ | M16*1.5 | 90 | 180 | 160 | M48*2 | ||||
| K18/24J2 | SD209KJ | M22*1.5VOSS | 0 | 135 | 190 | M48*2 | ||||
| K20/24J2 | SD210KJ | M22*1.5VOSS | 0 | 135 | 216 | M48*2 | ||||
| K22/24J2 | SD211KJ | M22*1.5VOSS | 0 | 135 | 160 | M48*2 | ||||
| SD211KJ01 | BY9451 | M16*1.5 | 0 | 135 | 160 | M48*2 | ||||
| SD211KJ02 | BY9460 | 195 | ||||||||
| SD211KJ03 | BY9452 | 160 | ||||||||
| K24/24J2 | SD212KJ | M22*1.5VOSS | 0 | 135 | 160 | M48*2 | ||||
| Long Cylinder: | ||||||||||
| K14/24JA2 | SD271KJN01 | BDW6801424 | M22*1.5VOSS | 0 | 135 | 9600 | 161 | |||
| SD271KJN02 | BY9276-K001057 | 4121 1359 | M16*1.5 | 160 | M48x2 | |||||
| K16/24JA2 | SD272KJN01 | M22*1.5VOSS | 90 | -135 | 9700 | |||||
| SD272KJN02 | 77723790 | M16*1.5 | 180 | |||||||
| SD272KJN03 | BY9331-K014030 | 41285151 41285152 | 0 | 135 | M48x2 | IVECO |
